Stainless Steel Pleated Filter Cartridge with Handle

Stainless Steel Pleated Filter Cartridge with Handle: The Robust Guardian of Industrial Filtration

In the modern industrial filtration sector, efficiency and reliability are paramount. The stainless steel pleated filter cartridge with a handle, renowned for its unique structural design, exceptional performance, and broad applicability, has become the preferred filtration solution in numerous demanding operating conditions. It not only inherits the technical advantages of traditional pleated filter cartridges but also achieves a leap in performance through upgrades in material and design.

1. What is a Stainless Steel Pleated Filter Cartridge with Handle?

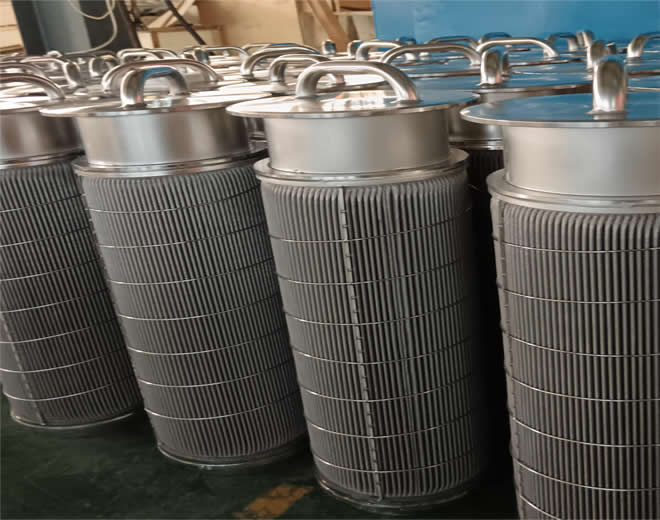

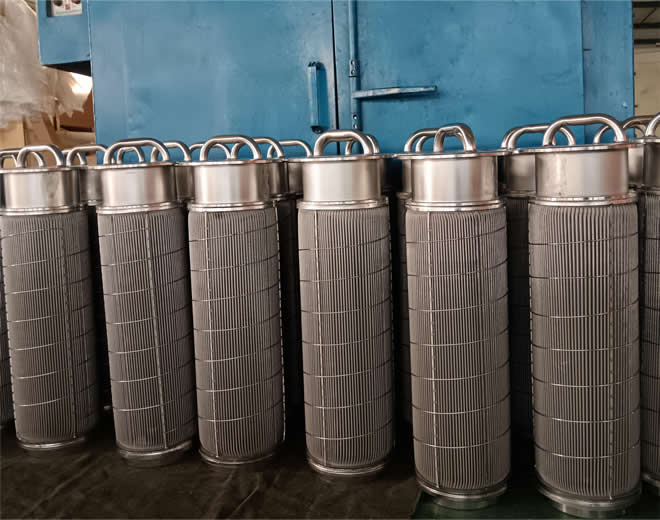

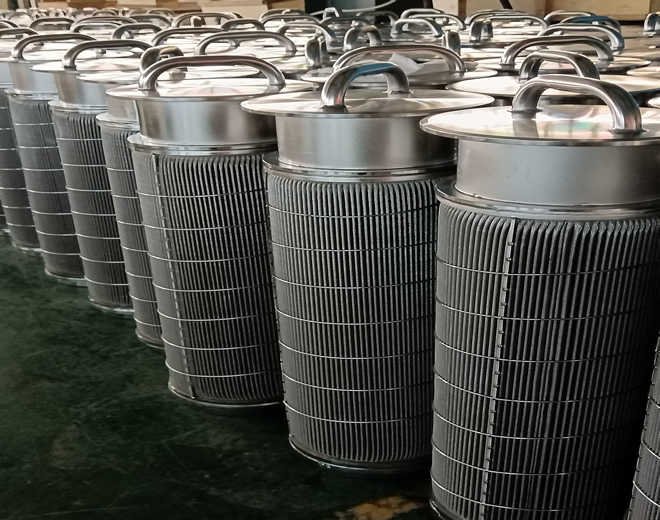

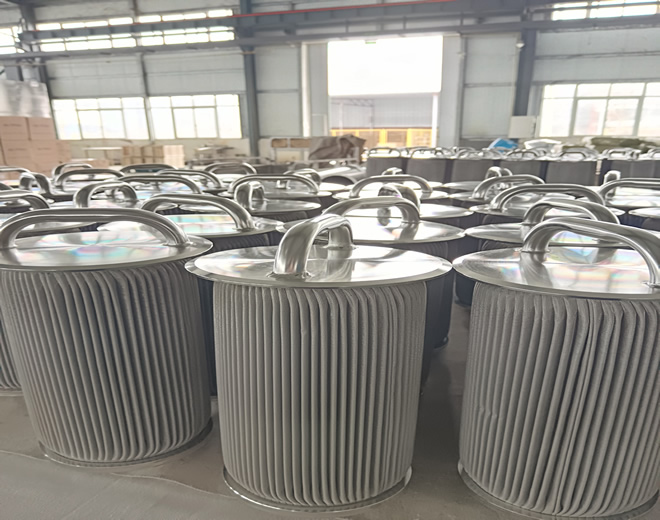

This is a type of filter cartridge primarily made of 316L or 304 stainless steel. Its core features include:

• Pleated Structure: The metal filter mesh is precisely folded into wave-like creases, maximizing the effective filtration area within a compact volume.

• Integrated Handle Design: A stainless steel handle is integrated into the top of the cartridge, greatly facilitating installation, removal, and handling—particularly ideal for sterile or high-risk contamination environments.

• All-Metal Construction: Components ranging from the inner骨架, filter layer, to outer end caps are entirely metal, providing unparalleled structural strength and integrity.

2. Key Advantages: Why Choose It?

1. Tolerance for Extreme Conditions

   • High Temperature and Pressure Resistance: Capable of operating long-term under high temperatures of up to 500°C and high pressures of several tens of bars, which is unmatched by any polymer filter material.

   • Chemical Corrosion Resistance: 316L stainless steel offers excellent resistance to acids, alkalis, solvents, and various corrosive media, ensuring a long service life.

   • High Mechanical Strength: The robust structure can withstand high-flow impact and frequent backwashing without easy deformation or damage.

2. Exceptional Filtration Performance

   • High Dirt Holding Capacity: The pleated structure provides a vast surface area, allowing it to trap large amounts of impurities with a slow rise in pressure differential.

   • Wide Filtration Precision Range: Various filtration精度 from 1μm to 100μm can be selected based on needs, meeting requirements from coarse to fine filtration across multiple stages.

   • Cleanability and Reusability: Pollutants can be thoroughly removed via high-pressure water rinsing, ultrasonic cleaning, or high-temperature burning, enabling multiple reuses and lowering overall costs.

3. Hygiene and Safety

   • Non-Toxic and Shedding-Free: Complies with FDA certification, ensuring no release of substances into the fluid, absolutely guaranteeing product cleanliness.

   • Easy Sterilization: Can withstand CIP/SIP (Cleaning-in-Place/Sterilization-in-Place), making it ideal for industries like food, pharmaceuticals, and bioengineering.

4. User-Friendly Design

   • Convenient Handle Operation: Avoids direct contact with the cartridge during replacement, ensuring safety and ergonomic efficiency, while reducing replacement time and labor intensity.

3. Typical Application Scenarios

Due to its outstanding reliability, the stainless steel pleated filter cartridge with a handle serves as a "key player" in the following fields:

• Petrochemical Industry: Catalyst recovery, process gas purification, and filtration of high-temperature oils.

• Biopharmaceuticals: Sterile filtration of fermentation air, fine filtration of pharmaceutical liquids, and terminal assurance of water for injection.

• Food and Beverage: Clarification filtration of beer, wine, juices, and final filtration in CIP systems.

• Electronics Industry: Precision filtration of high-purity chemicals (e.g., etchants, photoresists), ensuring chip production yield.

• Nuclear Power and Military: Special fluid handling systems where safety and reliability are critically required.

4. Selection and Usage Guide

Choosing the right filter cartridge is key to leveraging its performance:

1. Material Confirmation: 304 stainless steel is suitable for general corrosive environments; for highly corrosive environments such as those with chloride ions, 316L must be selected.

2. Precision Selection: Choose the nominal filtration精度 based on the target particle size to be retained, with filtration tests conducted when necessary for verification.

3. Structural Dimensions: Ensure the cartridge's height, outer diameter, and interface method (e.g., plain end, threaded) perfectly match your filter housing.

4. Maintenance: Establish regular pressure differential monitoring records. Clean or replace the cartridge promptly when the pressure differential reaches the specified value. Inspect the cartridge for integrity after cleaning.

Conclusion

The stainless steel pleated filter cartridge with a handle represents a robust, efficient, and economical solution in the field of industrial filtration. It combines卓越 mechanical performance, outstanding filtration efficiency, and user-friendly design, playing an irreplaceable role in ensuring production continuity, enhancing product quality, and reducing operating costs. Whether facing high temperatures, corrosion, or stringent hygiene standards, it is a trustworthy and robust guardian for your technological processes.
