In the pharmaceutical industry, where human health is paramount, the safety and purity of every drop of medicinal liquid and every gram of raw material are critical. The pharmaceutical sintered wire mesh filter cartridge, a high-performance depth filtration element, serves as a core component in safeguarding drug quality and ensuring patient safety. Renowned for its exceptional filtration performance, outstanding physical and chemical stability, and long service life, it has become an indispensable "precision guardian" in modern pharmaceutical manufacturing.

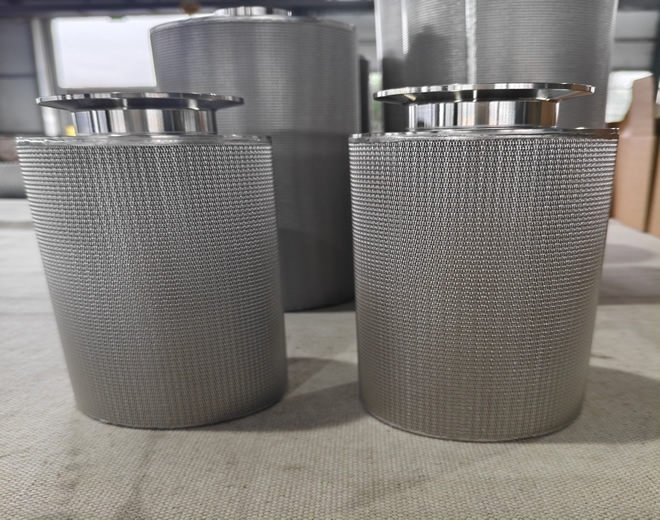

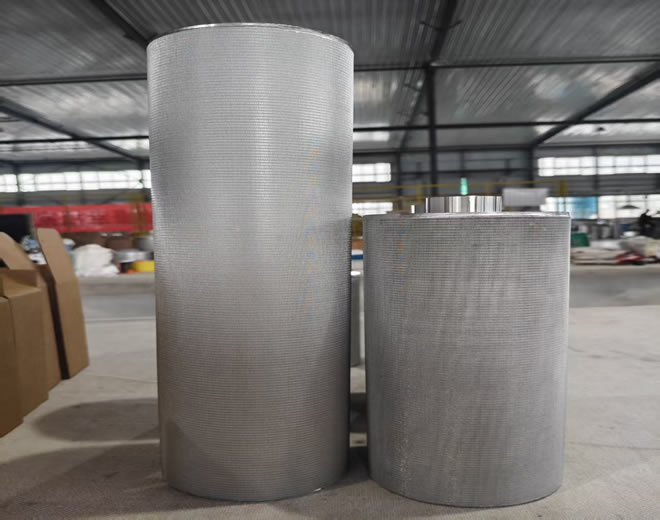

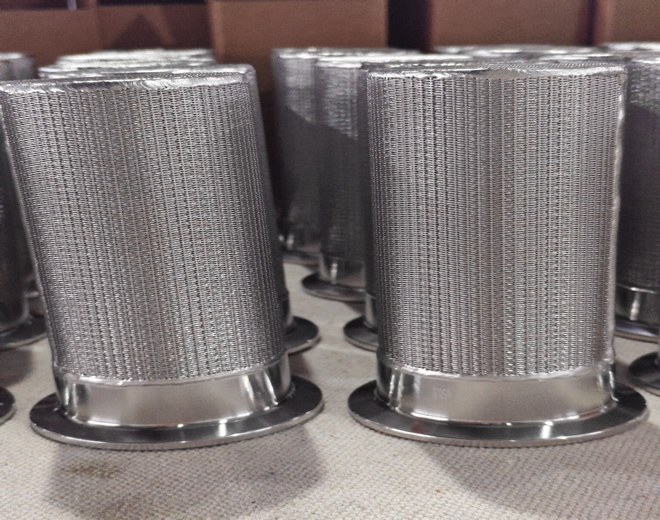

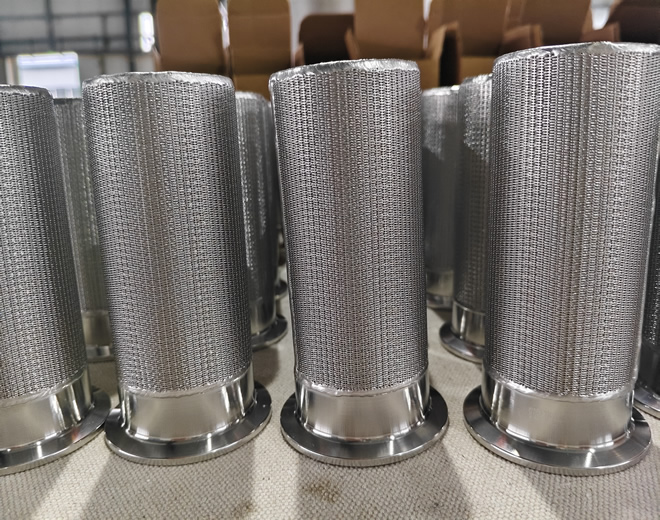

A pharmaceutical sintered wire mesh filter cartridge is manufactured by stacking multiple layers (typically three or five) of stainless steel wire mesh with varying pore sizes. This assembly is then fused into a single, rigid, porous structure through a high-temperature vacuum sintering process, followed by pressing and rolling. This unique manufacturing process creates a firm metallurgical bond between the layers, resulting in a rigid structure characterized by high strength, precise filtration ratings, and excellent porosity.
High Filtration Precision and Stability
It offers a wide range of filtration ratings, typically from 1μm to 100μm, effectively removing particulate contaminants, colloids, and even bacterial carriers from pharmaceutical fluids, ensuring clarity and purity.
The pore structure of the cartridge is uniform and stable, preventing migration or deformation under pressure fluctuations, which guarantees consistent and reliable filtration performance.
Exceptional Mechanical Strength and Integrity
It possesses high mechanical strength and pressure differential tolerance, withstanding frequent high-temperature steam sterilization and vigorous backwashing without cracking or deforming.
This property also allows the cartridge to undergo integrity testing (such as the Bubble Point Test), a mandatory validation requirement for sterilizing-grade filters in the pharmaceutical industry, ensuring system efficacy and batch-to-batch consistency.
Excellent Chemical Compatibility
Manufactured primarily from 316L low-carbon stainless steel, it offers superior corrosion resistance, tolerating most acids, alkalis, organic solvents, and pharmaceutical fluids, thereby preventing cartridge corrosion and fluid contamination.
Absolute Filtration and Reusability
Sintered mesh performs surface filtration, where particles are retained on the surface of the cartridge rather than clogging the interior. This allows for easy and thorough cleaning via back-pulsing, ultrasonic cleaning, or chemical soaking, with a high rate of performance recovery, enabling multiple reuses.
This characteristic significantly reduces operating costs and waste generation, offering both economic and environmental benefits.
Resistance to Extreme Process Conditions
It can withstand Steam-in-Place (SIP) and Clean-in-Place (CIP) procedures, making it perfectly suited for the stringent requirements of sterile manufacturing environments in the pharmaceutical industry.
Its high-temperature resistance also makes it suitable for filtering high-temperature process fluids.
Pharmaceutical sintered wire mesh filter cartridges are widely used in various stages of pharmaceutical production:
Injectables and Ophthalmic Solutions: For fine filtration of liquids to remove微小颗粒 and ensure product clarity and sterility assurance.
Biologicals and Blood Products: Plays a key role in clarifying fermentation broths, cell harvesting, and final product filtration.
Active Pharmaceutical Ingredient (API) Manufacturing: Filters reaction intermediates and catalyst particles, protecting downstream purification equipment.
Solvent and Process Water Filtration: Used for the final filtration of Purified Water, Water for Injection (WFI), and various process solvents.
Gas Filtration: Used for sterilizing, removing oil and moisture from compressed air, nitrogen, and other process gases.
When selecting a suitable pharmaceutical sintered wire mesh filter cartridge, the following factors should be considered:
Filtration Rating: Determined by the size of particles to be removed and the required cleanliness level of the target fluid.
Material: 316L stainless steel is the standard choice; for highly corrosive fluids, alternatives like Hastelloy or Titanium may be considered.
Dimensions and Connections: Ensure the cartridge size and connection type (e.g., flat gasket, 222/226 tri-clamp) match the existing filter housing.
Regulatory Compliance: The manufacturing of the cartridge should comply with Good Manufacturing Practice (GMP) requirements, supported by relevant material certifications and factory test reports.
