Stainless Steel Melt Filter Cartridges in the Chemical Fiber Industry
Stainless steel melt filter cartridges are a critical component in the chemical fiber industry, particularly in melt spinning processes (for producing polyester, nylon, polypropylene, etc.). Their application is directly related to the quality, production efficiency, and cost of the final synthetic fibers.
I. Core Function: What is it?

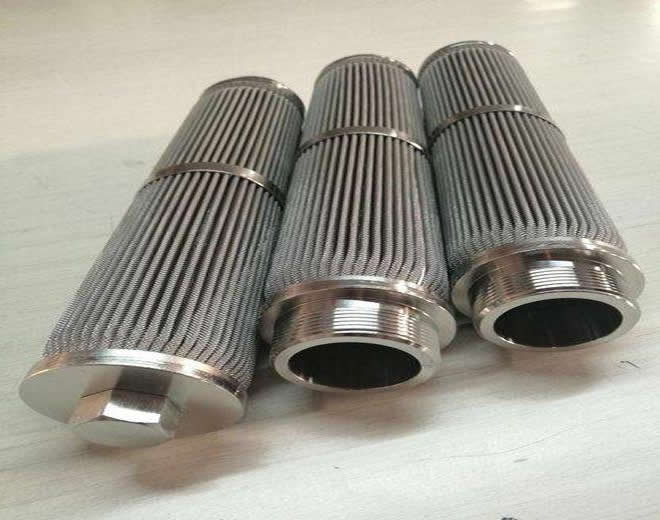

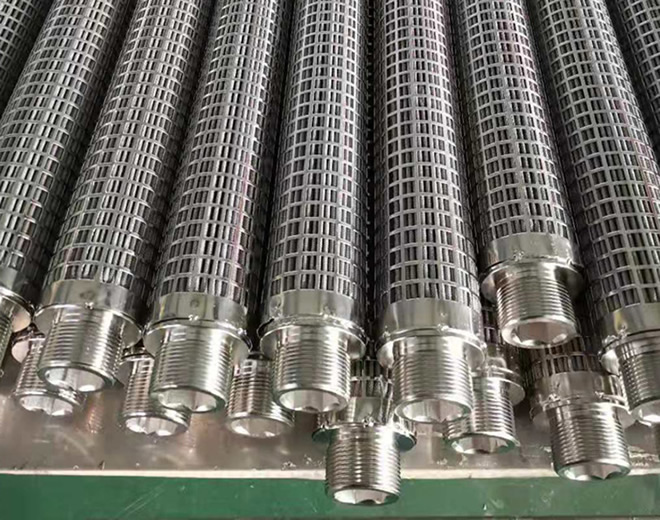

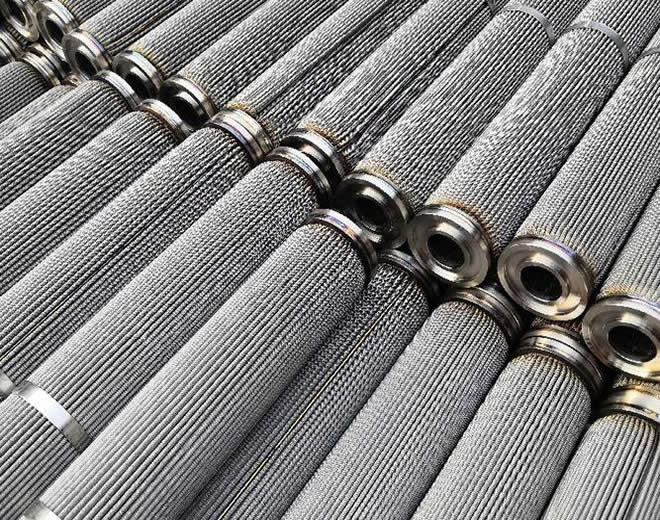

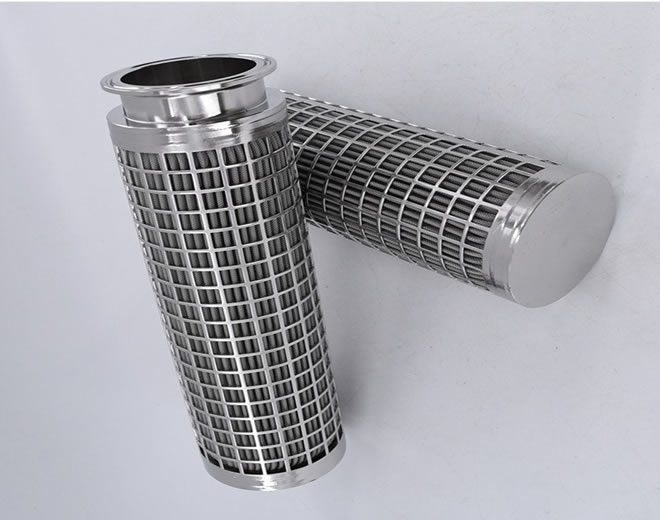

A stainless steel melt filter cartridge is a porous, depth-type filtration element made from very fine stainless steel fibers (or powder) sintered together through a special manufacturing process. Its core function is to provide fine filtration of the polymer melt before it enters the spinning assembly.
II. Key Applications and Roles
It is primarily installed in the melt pipeline and spinning beam, positioned right before the metering pump and spinneret, acting as a crucial "gatekeeper."
Specific Roles:
Removing Impurities to Ensure Spinning Continuity
Filters Gel Particles: Polymers can form unmeltable "gel particles" due to localized overheating or oxidation during high-temperature processing. These particles can clog the extremely fine holes in the spinneret (typically 0.1-0.3 mm in diameter), causing single filaments to break (known as "broken filaments"), severely disrupting production stability.
Filters Mechanical Contaminants: Removes solid particles like carbonized material, metal debris, and dust present in the raw material or introduced during production.
Homogenizing Melt Pressure and Viscosity, Enhancing Fiber Quality
The filter cartridge acts as a uniform resistance, helping to stabilize and evenly distribute the melt flow, pressure, and velocity.
Stable pressure and flow result in more consistent melt streams extruded from each spinneret hole. This effectively improves the uniformity of fiber linear density, tensile strength, and dyeing consistency, which is key to producing high-quality, differentiated fibers.
Extending the Service Life of Critical Equipment
A clean melt reduces the wear and corrosion on downstream precision components (such as metering pumps and spinnerets), significantly extending their service and cleaning cycles, thereby reducing maintenance costs and downtime.
Improving Production Efficiency and Product Grade
Effective filtration drastically reduces the broken filament rate on the spinning line and significantly increases the full-bobbin ratio of the winding equipment, directly boosting production efficiency.
Fewer breaks and defects result in a higher percentage of first-grade products.
III. Advantages of Stainless Steel Melt Filter Cartridges
Compared to other filter media (e.g., sand filters, ceramic filters), stainless steel melt filter cartridges offer unique advantages:
High Mechanical Strength & Pressure Resistance: Withstand the high pressure (up to 30+ MPa) and high differential pressure in melt pipelines without breaking.
Excellent Thermal Stability: Can operate stably at high temperatures (280°C - 300°C) for extended periods without deformation or degradation.
Depth Filtration with High Dirt Holding Capacity: Their three-dimensional mesh structure captures contaminants throughout their depth, holding significantly more particulate than surface filters, thus extending service cycles.
Cleanable & Reusable: This is their most significant economic advantage. After use, they can be regenerated using methods like high-temperature incineration, ultrasonic cleaning, or chemical cleaning to remove residual polymer and carbon deposits. They can be reused multiple times, offering a low lifecycle cost.
Good Permeability: Their structure ensures high filtration efficiency while maintaining a low initial pressure drop.
IV. Key Performance Parameters and Selection
When selecting stainless steel melt filter cartridges for the chemical fiber industry, the following are primary considerations:
Filtration Rating: The most critical parameter, usually expressed in micrometers (μm). Common ranges are from 10μm to 40μm, depending on product requirements. Finer denier or microfilament production requires higher precision (e.g., 10-20μm), while conventional fibers may use 25-40μm.
Material Grade: 316L Stainless Steel is standard due to its excellent high-temperature resistance and corrosion resistance.
Shape and Size: The most common shape is the candle filter, though disc and tubular types are also used. It must precisely match the filter housing.
Porosity and Permeability: Directly affect the initial pressure drop and flow rate.
