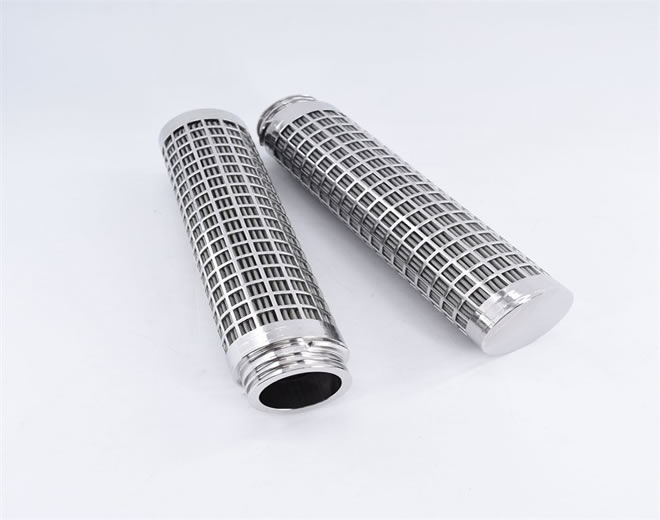

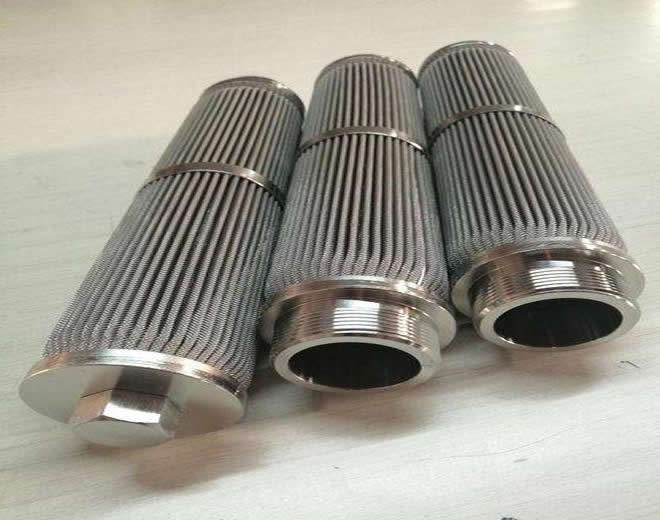

High-Viscosity Polymer Stainless Steel Melt Filter Cartridges: Precision Guardians for Demanding Processes
In modern polymer processing industries, particularly in the production of specialty plastics, chemical fibers, resins, and food-grade polymers, precision filtration of high-viscosity melts is a critical step to ensure final product purity, performance, and production line stability. High-Viscosity Polymer Stainless Steel Melt Filter Cartridges are the core filtration elements engineered specifically for these extreme operating conditions. They combine superior contaminant removal, excellent mechanical strength, and outstanding process compatibility.
These filter cartridges are designed for filtering polymer melts (such as PET, PA, PC, PP, PE, and specialty engineering plastics) under conditions of high temperature, high pressure, and high viscosity. Utilizing specially structured multi-layer sintered stainless steel fiber media or high-precision woven wire mesh as the filtration medium, and manufactured through advanced processes, they effectively remove minute solid contaminants from the melt, including gel particles, carbonized specks, metal fines, and catalyst residues.
Exceptional Filtration Efficiency & High Dirt-Holding Capacity
Engineered with a gradient density design or multi-layer composite structure, achieving a combination of surface and depth filtration. The outer layer captures larger particles, while the inner layers intercept finer impurities. This ensures high filtration precision (standard range: 1μm to 150μm, customizable) while providing significantly greater flow capacity and dirt-holding capacity than flat screens, dramatically extending service life.
Robust Construction & Superior Mechanical Strength
Manufactured entirely from 316L or higher-grade stainless steel, offering极高的 mechanical strength and structural integrity. Capable of withstanding system pressures up to 20-30 MPa, as well as repeated pressure fluctuations and mechanical shock. This effectively prevents media deformation, rupture, or migration, ensuring reliable filtration performance.
Excellent High-Temperature & Corrosion Resistance
The all-metal construction withstands continuous operating temperatures exceeding 500°C, fully accommodating the melt processing temperatures of various polymers. Superior corrosion resistance protects against potential degradation byproducts or minor additives, ensuring cartridge longevity and product cleanliness.
Optimized Fluid Dynamics Design
Specifically designed for the properties of high-viscosity fluids. Features such as large support area, low-flow-resistance support structures (e.g., star or annular cores), and rational pore distribution aim to maximize the effective filtration area. This lowers the initial pressure drop and slows its rate of increase, resulting in energy savings and enhanced production efficiency.
Effective Backwashing & Regenerability (For Specific Models)
For cartridges manufactured with specific media, upon reaching a preset pressure differential, trapped contaminants can be effectively removed via specialized reverse-flow (backpulsing) processes, allowing for multiple regeneration cycles. This significantly reduces the long-term operating cost of high-value filter elements and minimizes waste generation.
No Media Shedding or Migration
The sintered or woven metal structure is robust, with fibers securely locked in the matrix. This guarantees no fiber or particle release under high-velocity fluid冲刷, eliminating the risk of secondary contamination. It is the ideal choice for producing high-end films, optical fibers, medical polymers, and other products with stringent purity requirements.
Broad Compatibility & Customizability
Available with standard end cap configurations (e.g., flat, stepped, threaded) and connection sizes for seamless compatibility with leading melt filter housings (e.g., Reifenhäuser, Gneuss, Hilliard). Full customization of dimensions, filtration ratings, materials (e.g., Hastelloy), and construction is supported to meet unique process requirements.
Chemical Fiber Industry: Final precision filtration prior to melt spinning of polyester (PET), nylon (PA6/PA66), polypropylene (PP).
Plastics Extrusion: Production of high-end films (BOPP, BOPET), sheets, pipes, fiber optic buffer tubes, and specialty extruded profiles.
Injection Molding & Compounding: Purification of engineering plastics, masterbatches, and food-contact-grade materials to enhance product optical properties, mechanical strength, and consistency.
Resin Synthesis: Post-polymerization filtration to remove catalyst residues and reaction by-products.
Food & Pharmaceutical Packaging: Ensuring the highest levels of purity and safety for polymers used in packaging applications.
Selecting the appropriate filter cartridge is key to optimizing performance. Primary considerations include:
Polymer Type & Viscosity: Determines requirements for temperature resistance, corrosion resistance, and acceptable initial pressure drop.
Contaminant Profile & Load: Determines the required filtration rating and dirt-holding capacity.
Process Parameters: Operating temperature, maximum system pressure, and target pressure differential are fundamental for sizing.
Filtration System Configuration: Single or multi-cartridge? Does it require continuous switching or backwashing capability?
Close collaboration with a专业 supplier is recommended. Providing detailed process data enables accurate cartridge sizing and system design.
