Guardian of Nitric Acid Industry: Stainless Steel Sintered Mesh Filter Cartridge - Professional Analysis

1. Introduction: Filtration Challenges in Nitric Acid Production

Nitric acid, as a fundamental chemical raw material, is widely used in fertilizers, explosives, dyes, pharmaceuticals, and other fields. Its production process involves high temperatures, strong oxidation, and highly corrosive environments, posing extreme demands on filtration equipment. Ordinary filter materials easily corrode and fail under the action of concentrated nitric acid, nitrogen oxides, and high-temperature steam. Stainless steel sintered mesh filter cartridges have become the preferred solution for filtration systems in the nitric acid industry due to their excellent corrosion resistance and structural stability.

2. Product Overview: Filter Cartridge Designed for Nitric Acid Environments

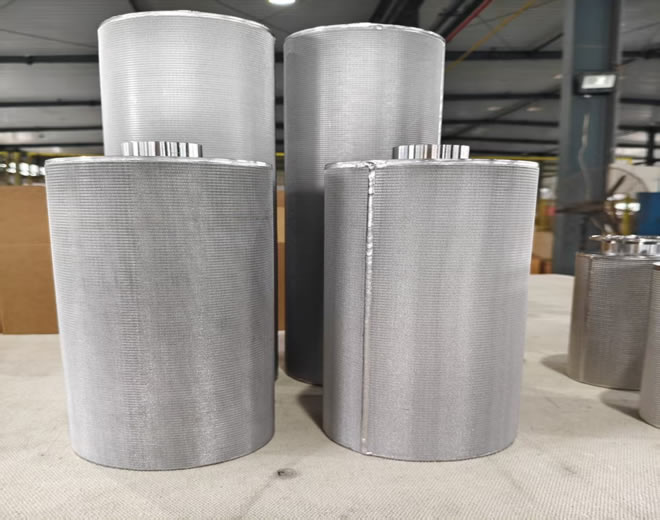

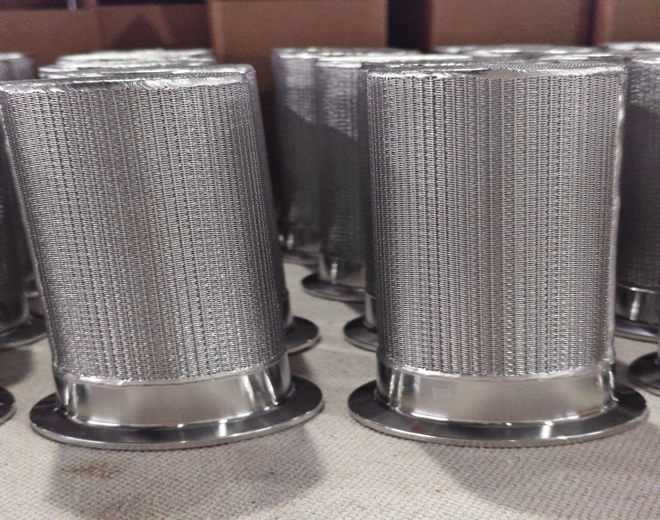

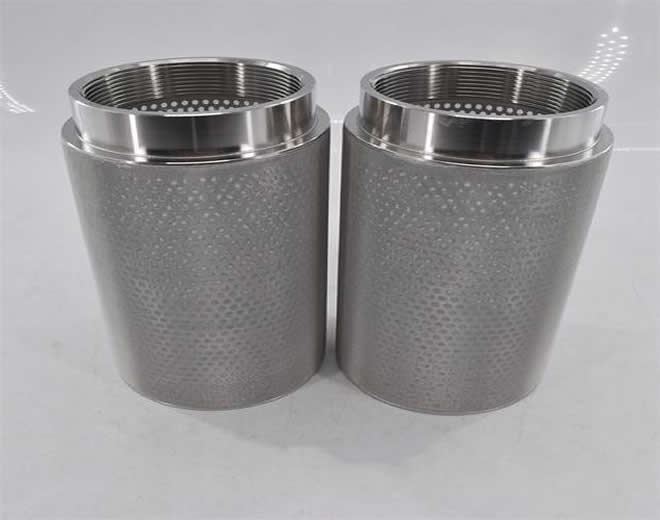

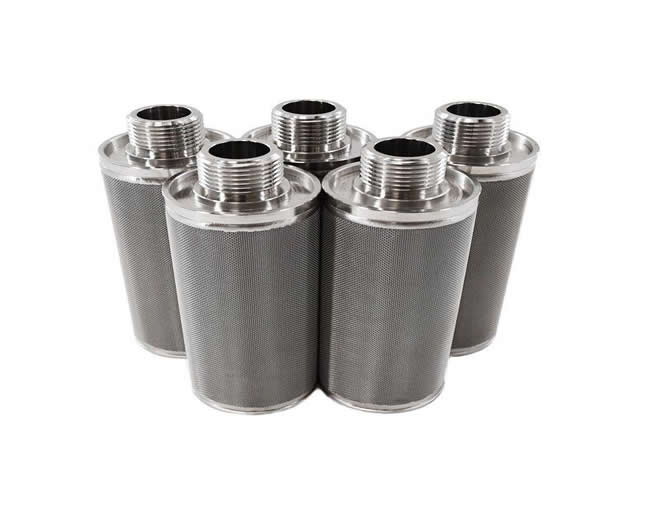

The stainless steel sintered mesh filter cartridge for nitric acid is a high-performance filter element manufactured by stacking multiple layers of metal fiber mesh, high-temperature sintering, and precision folding processes using special stainless steel materials. It is not just a simple physical barrier but an engineered product optimized for the characteristics of nitric acid media.

3. Core Technical Features

3.1 Excellent Corrosion Resistance

• Special Material Selection: Uses high-end stainless steel materials such as 316L, 904L, 2205 Duplex Steel, Hastelloy C-276.

• Special Treatment Process: Surface passivation treatment forms a stable chromium oxide protective film.

• All-Welded Structure: Avoids failure risks caused by adhesive dissolution in nitric acid.

3.2 Precise Filtration Accuracy Control

• Wide Accuracy Range: From 1 micron to 100 microns, meeting needs of different process stages.

• Absolute Accuracy Guarantee: Utilizes surface filtration mechanism with interception efficiency over 99.9%.

• Uniform Pore Size Distribution: Ensures stable flow and gradual pressure differential change.

3.3 Outstanding Mechanical Properties

• High-Temperature Tolerance: Can operate long-term in nitric acid vapor environments at 200-400°C.

• High Pressure Resistance: Burst pressure up to 10-15 MPa with high safety factor.

• Impact Resistance: Withstands pressure fluctuations and fluid impact in nitric acid production.

3.4 Optimized Fluid Dynamics Design

• Pleated Structure: Increases filtration area 2-3 times, reducing initial pressure drop.

• Gradient Density Design: Gradually decreasing pore size from outside to inside achieves deep dirt retention.

• Smooth Surface: Reduces nitric acid crystal adhesion, facilitating cleaning and maintenance.

4. Product Structure and Specifications

Standard Structure Configuration

Five-layer composite structure:
1. Outer Protection Layer (coarse mesh): 40-80 mesh, pre-filters large particles
2. Filtration Control Layer: 80-120 mesh, evenly distributes fluid
3. Core Filtration Layer: 200-600 mesh, achieves precision filtration
4. Internal Support Layer: 20-40 mesh, provides mechanical strength
5. Central Skeleton: Stainless steel perforated tube, ensures structural rigidity

Common Specification Parameters

• Diameter: φ50mm, φ65mm, φ100mm, φ150mm

• Length: 250mm, 500mm, 750mm, 1000mm

• Connection Types: M30, M36 threads, 222/226, 215/250 bayonet

• Filtration Area: 0.2-2.0 m² (depending on specifications)

5. Key Applications in Nitric Acid Production

5.1 Ammonia Oxidation Process

• Platinum-Rhodium Catalyst Protection: Filters micron-sized dust from air to prevent catalyst poisoning.

• High-Temperature Gas Filtration: Filters nitrogen oxide mixtures at 800-900°C.

• Application Location: After air preheater, before ammonia-air mixer.

5.2 Absorption System Filtration

• Concentrated Nitric Acid Filtration: Removes iron ion impurities, silica gel particles.

• Dilute Nitric Acid Purification: Intercepts pipeline corrosion products, mechanical impurities.

• Bleaching Tower Feed Filtration: Ensures finished acid transparency.

5.3 Tail Gas Treatment System

• Acid Mist Capture: Recovers nitric acid droplets, reduces emission losses.

• Catalyst Particle Interception: Protects catalyst before SCR denitrification unit.

• Application Benefits: Recovery rate up to 0.5-1.0%, significant environmental and economic benefits.

5.4 Critical Equipment Protection

• Nitric Acid Pump Protection: Mechanical seal flush filtration extends pump service life.

• Instrument Protection: Pre-filtration for flow meters, control valves ensures measurement accuracy.

• Heat Exchanger Protection: Prevents heat exchange tube clogging, maintains heat transfer efficiency.

6. Selection Guide and Technical Points
Material Selection Matrix

Accuracy Selection Principles

1. Pre-filtration Stage: 20-40μm, protects main filter.

2. Main Process Filtration: 5-10μm, ensures product quality.

3. Safety Filtration: 1-3μm, protects precision equipment.

4. Final Filtration: 0.5-1μm, special high-purity requirements.

7. Installation, Usage, and Maintenance
Installation Precautions

1. Direction Confirmation: Strictly install according to "outside-in" flow direction.

2. Seal Inspection: Use PTFE or FPM sealing rings to prevent nitric acid leakage.

3. Pre-flush Procedure: Circulate dilute nitric acid for 30 minutes before using new cartridges.

4. Pressure Differential Monitoring: Install differential pressure gauge, monitor 0.2-0.3 MPa replacement point.

Cleaning and Regeneration Techniques

1. Online Backwashing:

   • Medium: Clean compressed air or nitrogen.

   • Pressure: 0.4-0.6 MPa, not exceeding 80% of design pressure.

   • Frequency: When pressure differential reaches 2 times initial value.

2. Offline Chemical Cleaning:

   • Alkaline Cleaning: 5% sodium hydroxide solution, soak at 60°C for 2-4 hours.

   • Acid Cleaning: 5% citric acid or nitric acid solution, circulate at room temperature.

   • Ultrasonic Cleaning: 40 kHz ultrasonic, pure water medium, 20-30 minutes.

3. High-Temperature Regeneration:

   • Conditions: Bake in muffle furnace at 400-450°C for 2 hours.

   • Applicability: Removes organic contamination.

   • Note: Control heating rate to avoid thermal stress.

Performance Monitoring and Replacement Criteria

• Initial Pressure Drop: Record pressure differential of new cartridge at rated flow.

• Replacement Threshold: When operating pressure differential reaches 3-4 times initial value, or exceeds 0.35 MPa.

• Service Life: 2-5 years under normal conditions, cleaning cycle 3-6 months.

• Scrap Criteria: Pressure drop recovery rate <70% after cleaning, or structural damage occurs.

8. Economic Benefit Analysis
Return on Investment Calculation

Hidden Benefits

1. Production Continuity: Reduces unplanned shutdowns, improves plant utilization.

2. Product Quality: Stable filtration accuracy ensures consistent nitric acid quality.

3. Equipment Protection: Extends pump, valve, instrument service life by 30-50%.

4. Safety Enhancement: Avoids leakage risks caused by filtration failure.

9. Industry Development Trends
Technological Innovation Directions

1. Nanocoating Technology: Surface coating with TiO₂ nanomaterials enhances corrosion resistance.

2. Intelligent Monitoring: Integrated sensors for real-time filtration status and lifespan monitoring.

3. Customized Design: Optimized design for specific nitric acid process parameters.

4. Material Upgrades: Development of higher cost-performance nitric acid-resistant alloys.

Market Application Expansion

1. Electronic Grade High-Purity Nitric Acid: Meets ppb-level purity requirements in semiconductor industry.

2. Circular Economy Applications: Key component in waste nitric acid recovery systems.

3. Green Nitric Acid Processes: Supports new environmentally friendly nitric acid production technologies.

4. Integrated Solutions: Provides filtration system design, installation, and operation services.
