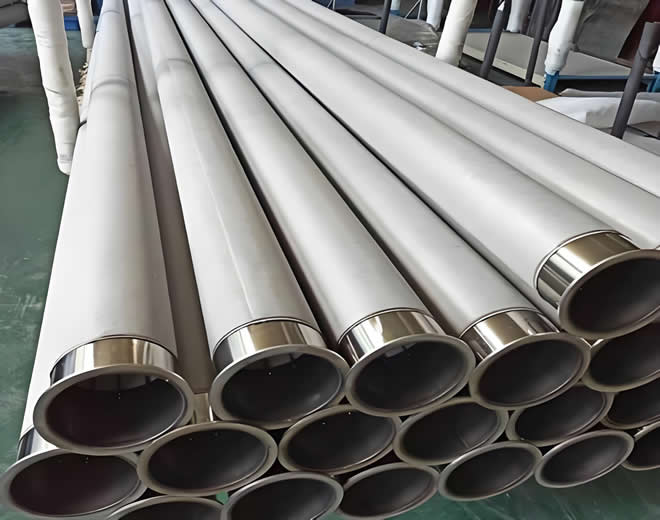

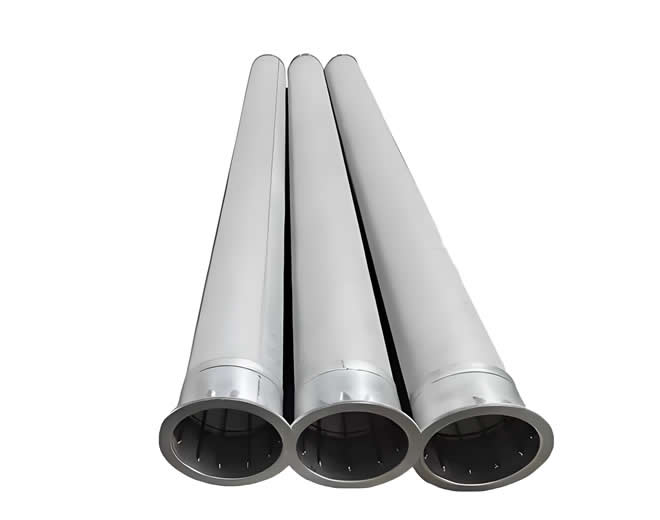

Stainless steel dust filter cartridges are high‑performance industrial filtration elements made primarily of stainless steel. Thanks to their high temperature resistance, corrosion resistance, and high mechanical strength, they have become the ideal replacement for traditional filter bags, especially in demanding conditions. In the particularly complex chemical industry, their value is maximised – through precise material selection and systematic design, they solve the three major challenges of corrosion, high temperature, and high precision, while significantly improving safety and cost‑effectiveness.
Compared with ordinary paper or polyester filter cartridges, the core advantages of stainless steel cartridges can be summarised in five points:
Excellent high‑temperature resistance – withstand extreme temperatures from 480°C to 800°C, suitable for high‑temperature flue gas cleaning in metallurgy, cement, waste incineration, etc.
Outstanding corrosion resistance – stainless steel (especially 316L) effectively resists strong acids, alkalis and other chemical attacks, avoiding filter media degradation.
Very high filtration efficiency – filtration accuracy from 0.1 μm to 100 μm, with capture efficiency for sub‑micron dust generally exceeding 99.5% , and high‑precision products reaching 99.99% .
High mechanical strength and long service life – withstand pulse pressure >0.6 MPa, service life up to 4 times that of traditional filter bags, greatly reducing replacement frequency and maintenance costs.
Excellent cleanability and economy – smooth non‑stick surface, supports high‑pressure water washing, ultrasonic cleaning, etc. The total life‑cycle cost is significantly lower than that of conventional cartridges.
These general advantages make them widely used in steel, chemical, food, pharmaceutical, waste incineration and other fields.
Chemical dust often has characteristics such as strong corrosivity, high temperature, high stickiness, flammability and explosivity. Ordinary filter cartridges easily fail. Therefore, applying stainless steel dust filter cartridges in the chemical industry must follow a four‑step approach: Precise material selection → Structural optimisation → System design → Standardised operation & maintenance.
| Material option | Applicable conditions | Key properties |
|---|---|---|
| 304 stainless steel | Weak acid/alkali off‑gas or general chemical dust | Temperature ≤200 °C, good cost‑effectiveness |
| 316/316L stainless steel | Strongly corrosive media containing chlorides (Cl⁻), sulphates, etc. – preferred choice for chemicals | Molybdenum addition, excellent pitting and intergranular corrosion resistance |
| PTFE membrane (on stainless steel support) | Highly sticky, strongly acidic/alkaline or oily dust | Smooth non‑stick surface, filtration accuracy down to 0.1 μm |
| Functional coating / special alloys (e.g., 310S, plasma sprayed coatings) | Extreme high temperature (>600 °C) or ultra‑aggressive environments | Withstand >800 °C, corrosion resistance increased by >3 times |
Practical tip: Higher filtration accuracy leads to higher pressure drop. For general process dust, choose 3–10 μm; for strict emission limits, choose 0.1–1 μm. In addition, stainless steel sintered felt cartridges are recommended because their graded structure combines high precision, high strength and high dust‑holding capacity.
Improve air tightness – Perform helium leak testing on critical welds to prevent leakage of hazardous gases.
Add explosion protection – When handling flammable dust (aluminium, coal dust, etc.), must equip explosion relief valves, non‑sparking fans and grounding systems.
Optimise airflow distribution – Use CFD simulations to ensure even gas distribution inside the dust collector, avoiding local abrasion or dust settling.
Source control – Install high‑efficiency enclosures at dust generation points to reduce dust release at source.
Proper installation – Cartridges must be mounted vertically with good top/bottom sealing to prevent dust “short‑cutting” into the clean air chamber.
Control filtration velocity – For high‑temperature dust, ≤0.8 m/min is recommended; for sticky dust, ≤1 m/min.
Intelligent pulse cleaning – Automatic cleaning based on differential pressure or time. For sticky dust, slightly increase blow pressure or frequency.
| Frequency | Actions |
|---|---|
| Daily | Check the pressure gauge, record operating resistance; investigate immediately if abnormal fluctuations occur. |
| Weekly | Check the sealing of pulse valve diaphragms. |
| Monthly | Clean ash hopper accumulations; drain water from the air receiver. |
| Annual shutdown | Thoroughly inspect stainless steel shell thickness and cartridge frames; perform high‑pressure air blow‑back or special chemical cleaning. Cleaning agents must not contain chlorides to avoid intergranular corrosion. |
Problem: Dust contained sulphuric acid mist and chlorides. Carbon steel equipment perforated after 3 months; filter bags replaced every month.
Solution: Upgrade equipment to 316L stainless steel; use PTFE‑coated glass fibre filter media; optimise airflow and cleaning system.
Benefits: Corrosion‑free operation for >18 months; emission concentration below 5 mg/m³; annual consumable cost saving 94% ; recovered raw material about 12 tons/year.
Problem: Original ceramic filter elements had low efficiency and short life.
Solution: Replace with stainless steel sintered felt cartridges.
Benefits: Filtration efficiency increased from 95% to 99.8% ; service life extended by >3 times.
Problem: High loss of expensive platinum/palladium catalysts.
Solution: Use stainless steel sintered felt cartridges (5 μm accuracy) to recover catalyst particles.
Benefits: Catalyst loss rate reduced from 0.8% to 0.2% ; annual cost saving exceeding 20 million RMB.
The general advantages of stainless steel dust filter cartridges (high temperature resistance, corrosion resistance, high efficiency, long life, easy cleaning) form their technical foundation. Their deep application in the chemical industry, however, is the ultimate test and refinement of these advantages. Through a systematic approach of precise material selection, structural optimisation, proper installation and scientific maintenance, chemical plants can easily meet strict environmental regulations (e.g., China’s Integrated Emission Standard of Air Pollutants) while achieving remarkable cost reduction and efficiency gains. Whether it is treating highly corrosive off‑gas or recovering high‑value precious metals, stainless steel dust filter cartridges have become a trustworthy core filtration component in the chemical industry.
