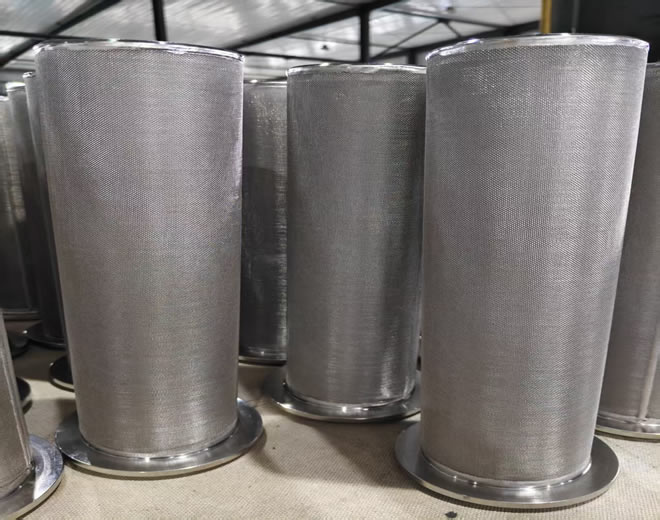

In modern hydraulic systems, clean oil is the fundamental guarantee of reliable, efficient, and long-lasting operation. Statistics indicate that over 70% of hydraulic system failures originate from fluid contamination. Among the various filter elements, the sintered wire mesh cartridge, with its unique properties, has become an indispensable "guardian" for hydraulic systems operating in demanding and harsh conditions.https://www.zhongbangfilter.com/133.html
The fundamental role of a sintered wire mesh filter cartridge is to efficiently remove solid contaminants from the hydraulic oil. These contaminants primarily include:
Internally Generated Particles: Metal shavings from component wear, seal degradation particles, and sludge from oil oxidation.
Externally Ingested Particles: Dirt and impurities entering through reservoir breathers, cylinder rods, and during maintenance.
Built-in Contamination: Residual casting sand, weld spatter, or metal chips left from system manufacturing or repair.
These tiny but hard particles can cause critical damage to the core precision components of a hydraulic system:
Pump Wear and Seizure: Leading to reduced volumetric efficiency, and insufficient flow and pressure.
Valve Sticking and Failure: Especially in proportional and servo valves, where precise clearances can be scratched or blocked, causing control failure.
Cylinder Scoring and Seal Damage: Accelerating seal wear, resulting in internal or external leaks.
With its uniform and high-precision pore structure, the sintered wire mesh filter cartridge effectively traps these "invisible killers" within the filter medium, providing a robust barrier for the system's core components.
Why are sintered wire mesh cartridges particularly suited for demanding hydraulic applications? The answer lies in the unique advantages derived from their material and structure:
1. Exceptional Mechanical Strength & Pressure Differential Resistance
Hydraulic systems experience significant pressure fluctuations, especially during cold starts or pressure shocks. The monolithic sintered structure of these cartridges can withstand extremely high-pressure differentials without collapsing or rupturing, preventing the catastrophic secondary contamination that occurs when a standard filter fails.
2. Superior Dirt Holding Capacity & Long Service Life
The unique gradient filtration structure (from outside-in, coarse-to-fine) allows contaminants to be captured not only on the surface but also deep within the material. This means it can hold significantly more dirt before reaching its terminal pressure drop, dramatically extending service intervals, reducing replacement frequency, and lowering maintenance costs.
3. Excellent Cleanability & Reusability
For systems with off-line filtration loops or where cartridges can be removed for cleaning, sintered wire mesh is the ideal choice. Its smooth surface and rigid structure allow for thorough contaminant removal via high-pressure back-pulsing, ultrasonic cleaning, or solvent soaking. This reusable nature offers a tremendous advantage in total lifecycle cost.
4. Good Flow Characteristics & Low Pressure Drop
The regular, three-dimensional network of pores offers low resistance to fluid flow, ensuring low-pressure drop even at high flow rates. This reduces system energy loss and ensures responsive hydraulic operation.
5. Outstanding Fatigue Resistance & Stability
Hydraulic systems are subject to continuous pressure pulses and vibrations. The all-metal construction of sintered cartridges offers excellent fatigue resistance. Unlike some fibrous media, it will not shed fibers (creating new contamination), and its filtration rating remains stable throughout its entire service life.
Pressure Line Filtration: Installed at the pump outlet to protect downstream valves and cylinders. This location demands a filter with extreme strength and pressure resistance, making sintered wire mesh an ideal choice.
Return Line Filtration: Captures wear particles carried in the return oil before they re-enter the reservoir. Its high dirt holding capacity is highly beneficial here.
Off-Line Filtration (Recirculation): A dedicated filtration unit that continuously cleans the oil in the reservoir. The cleanable and reusable nature of sintered cartridges makes these continuously running systems very cost-effective to maintain.
New Oil Fill Filtration: Even new oil contains contaminants. Using a sintered wire mesh filter when adding oil to the reservoir ensures the "lifeblood" of the system is clean from the start.
In modern hydraulic systems where high reliability, long life, and low total operating cost are paramount, the sintered wire mesh filter cartridge is more than a simple component. It is a protector, stabilizer, and cost-saver. By selecting high-quality sintered wire mesh filter cartridges and implementing a proper maintenance strategy, you can minimize downtime and repairs caused by oil contamination, providing the most solid guarantee for the stable operation of your equipment.
