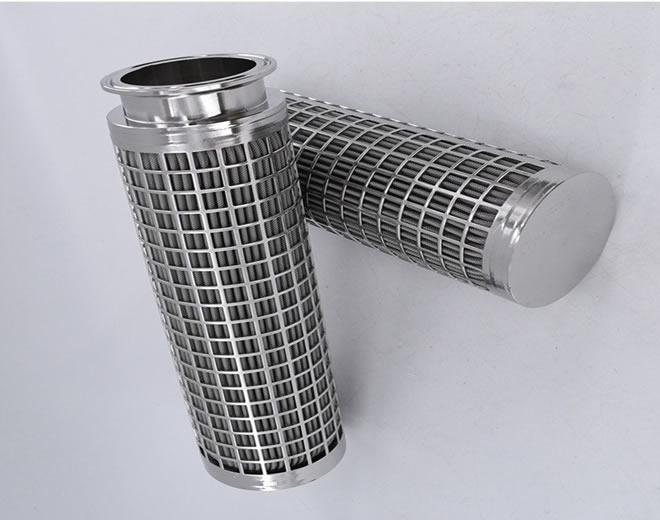

A sintered metal fiber felt filter element is a high-performance, depth-type industrial filter cartridge, typically manufactured from stainless steel fibers (such as 316 or 316L). It is produced by layering and randomly orienting metal fibers of varying diameters, which are then diffusion-bonded together in a high-temperature vacuum sintering process. This creates a porous, three-dimensional monolithic network structure.
https://www.zhongbangfilter.com/145.html
The advantages stem directly from its unique three-dimensional (3D) non-woven structure and metallic properties:
Depth Filtration & High Dirt Holding Capacity
Advantage: Contaminants are trapped throughout the entire thickness of the medium, not just on the surface. This "gradient density" effect allows it to hold a significantly larger amount of particulate before the pressure drop becomes critical, resulting in an exceptionally long service life.
High and Stable Filtration Rating
Advantage: It offers a wide filtration range, typically from 0.5μm to 100μm. The rigid, sintered structure ensures stable pore sizes that will not migrate or change under pressure, guaranteeing consistent and reliable filtration performance.
Excellent Mechanical Strength and Durability
Advantage: The metallurgical bonds between fibers create an extremely robust structure. It can withstand high differential pressures, severe pressure surges (water hammer), and mechanical stress without collapsing, distorting, or shedding fibers.
Superior Thermal Stability and Corrosion Resistance
Advantage: Made from 316/316L stainless steel, it exhibits excellent resistance to a wide range of chemicals, including acids, alkalis, and organic solvents. It operates effectively across an extreme temperature range, from -200°C to +650°C.
Excellent Cleanability and Reusability
Advantage: The robust construction allows for effective back-pulsing, ultrasonic cleaning, and chemical cleaning. Performance can often be restored to over 90% of its original state, enabling multiple cleaning and reuse cycles, which significantly reduces long-term operating costs.
High Porosity and Low Pressure Drop
Advantage: The 3D random fiber matrix provides numerous permeable flow paths. When pleated to increase surface area, it offers a very low initial pressure drop, leading to energy savings.
Due to its superior properties, sintered metal fiber felt is widely used in demanding applications where reliability, corrosion resistance, and high-temperature performance are critical:
1. Petrochemical & Chemical Processing
* Polymer Melt Filtration: Essential as a final "guard filter" before spinnerets in the production of fibers (e.g., polyester, nylon, polypropylene) to remove gels and carbonized particles.
* High-Temperature Fuel & Lube Oil Filtration: Used in hydrocrackers and other units to filter catalyst fines and contaminants from hot process streams.
* Aggressive Chemical Filtration: For precise filtration of strong acids, alkalis, and solvents.
2. Pharmaceutical & Biotech
* Process Water Systems: For final particulate and bacterial removal in Water for Injection (WFI) and Purified Water systems.
* Fermentation Air Sterilization: Providing sterile compressed air for bioreactors.
* Product Sterilizing-Grade Filtration: Especially for solutions requiring repeated steam sterilization (SIP).
3. Food & Beverage
* Clarification and Sterile Filtration of beer, wine, juices, and syrups.
* Edible Oil and Condiment Filtration.
* Final Filtration for CIP (Clean-in-Place) solutions.
4. Gas & Air Processing
* Compressed Air Purification: Removal of oil, water, and particulates to produce instrument-quality air.
* Process Gas Filtration: For natural gas and inert gases (e.g., N2, Ar).
* High-Temperature Off-Gas & Smokestack Filtration.
5. Water Treatment & Environmental
* Pre-filtration for Reverse Osmosis (RO) and EDI systems, protecting the delicate membranes.
* Polishing Filtration for industrial wastewater reuse.
6. High-End Manufacturing & Power Generation
* Hydraulic and Lube Oil Conditioning: Online filtration for critical machinery like gas turbines and compressors.
* Nuclear Power: Filtration in primary coolant loops.
* Semiconductor Manufacturing: Handling high-purity chemicals.
