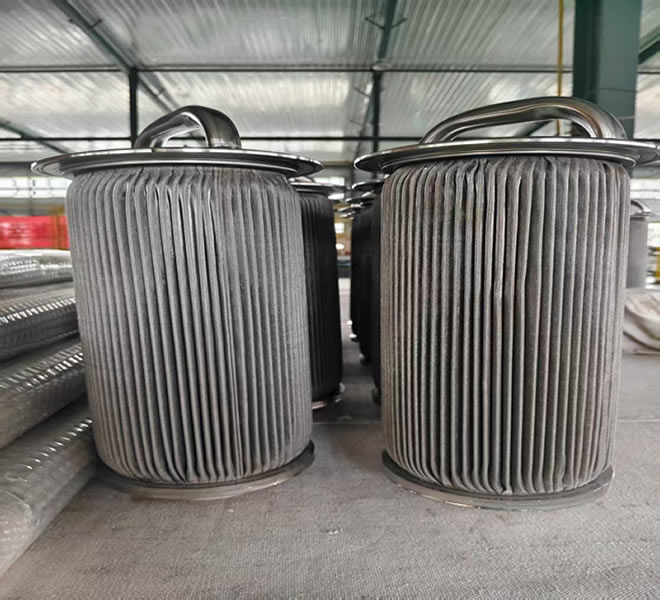

The stainless steel sintered fiber pleated filter element is made from metal fibers that are sintered at high temperatures to form a durable, multi-layer, and deep-porous filtration medium.
With a pleated (pleated-type) structure, the filter provides a significantly larger filtration area, ensuring high flow capacity and stable filtration efficiency.
It is widely used in fuel exhaust purification systems including diesel exhaust, generator exhaust treatment, and industrial fuel-burning emission control.
Fuel exhaust temperatures typically range from 300°C to 650°C.
Sintered fiber material maintains exceptional stability under high heat without melting, deforming, or degrading, making it ideal for exhaust gas filtration.
The 3D porous metal fiber structure effectively captures fine and sub-micron particles.
Filtration rating ranges from 1–30 μm, and the pleated design greatly increases the effective filter area while reducing pressure drop, ensuring smooth exhaust flow.
Fuel exhaust contains sulfur compounds, NOx, moisture, and combustion residues, which are highly corrosive.
316L/304L stainless steel provides strong resistance to chemical corrosion.
The metallic fiber structure also withstands reverse-pulse cleaning or vibration impact without breaking.
Unlike disposable filters, stainless steel sintered fiber filters can be cleaned using ultrasonic washing, back-flushing, and chemical cleaning.
This significantly extends service life—often lasting several years—and lowers maintenance and replacement costs.
Diesel Particulate Filtration (DPF)
Captures soot particles (PM) from diesel engines to improve emission control.
Industrial Fuel-Fired Boilers & Burners
Removes smoke and fine particles produced during combustion to meet environmental discharge requirements.
Generator & Power Equipment Exhaust Filtration
Ensures exhaust emissions from power generators (mines, oil fields, remote stations) remain within regulated limits.
Fuel-Based Heating Equipment Exhaust Purification
Suitable for exhaust purification of fuel heaters, diesel hot-air blowers, and other combustion systems.
Material Options: 304, 304L, 316, 316L
Filtration Rating: 1–30 μm
Design: Pleated structure, large filtration area, inner & outer protective mesh
Connection Types: 222/226 interface, threaded, flange, custom options
Operating Temperature: Continuous use up to 650°C
Characteristics: Low pressure drop, high mechanical strength, vibration-resistant
With excellent high-temperature stability, high filtration efficiency, corrosion resistance, and long service life, the stainless steel sintered fiber pleated filter element has become an ideal solution for fuel exhaust particle filtration.
From vehicle exhaust purification to industrial boiler emissions and generator exhaust treatment, it ensures stable and compliant emissions performance.
