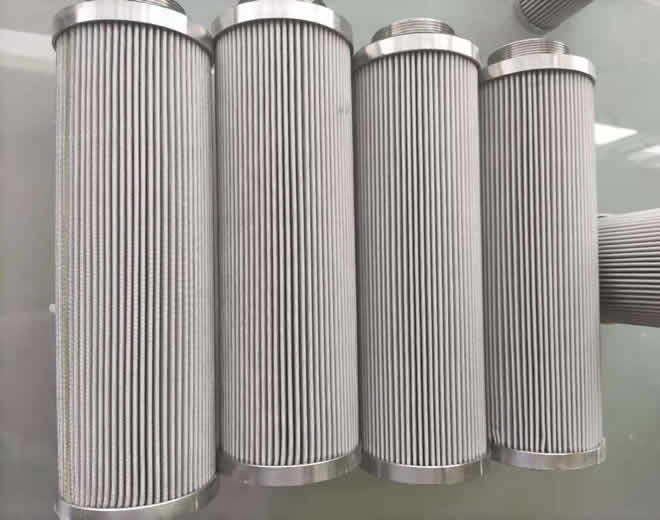

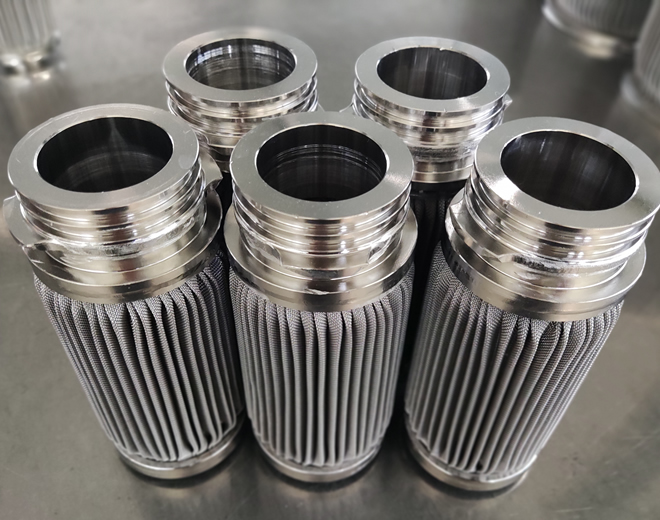

A five-layer sintered mesh filter element is a specialized filtration medium constructed from multiple layers of sintered metal mesh screens stacked and fused together to form a porous structure with precise filtration capabilities. Each layer of mesh is composed of stainless steel wires woven together and then sintered under high temperature and pressure to create a durable and uniform structure. The unique design of the five-layer sintered mesh filter element offers enhanced filtration efficiency, increased dirt-holding capacity, and improved mechanical strength compared to traditional single-layer or three-layer sintered mesh filters.
The construction of a five-layer sintered mesh filter element typically consists of alternating layers of coarse and fine mesh screens, arranged in a gradient pattern from outer to inner layers. This design provides progressive filtration, with larger particles being captured by the outer layers while smaller particles are trapped by the inner layers. The multiple layers of mesh also increase the total filtration area, allowing for higher flow rates and longer service life.
The five-layer sintered mesh filter element offers several advantages over other types of filtration media:
1. High Filtration Efficiency: The multi-layered structure of the filter element ensures efficient particle capture across a wide range of sizes, from coarse to fine particles. This results in superior filtration performance and cleaner process fluids.
2. Enhanced Dirt-Holding Capacity: The increased number of filtration layers and larger surface area allow the filter element to hold more dirt and contaminants before requiring cleaning or replacement. This extends the maintenance intervals and reduces downtime in industrial applications.
3. Improved Mechanical Strength: The sintering process used to manufacture the filter element creates strong bonds between the metal wires, resulting in a robust and durable filtration medium that can withstand high pressures, temperatures, and mechanical stress.
4. Uniform Pore Structure: The uniform pore size and distribution of the sintered mesh screens ensure consistent filtration performance and prevent channeling or bypassing of fluid flow through the filter element. This results in reliable and predictable filtration outcomes.
5. Chemical Resistance: Stainless steel, the primary material used in the construction of five-layer sintered mesh filter elements, offers excellent corrosion resistance and compatibility with a wide range of chemicals and fluids. This makes the filter element suitable for use in demanding industrial environments.
Applications for five-layer sintered mesh filter elements span across various industries, including:
- Oil and Gas: Filtration of well fluids, natural gas, and hydraulic fluids in upstream and downstream oil and gas operations.
- Chemical Processing: Purification of process streams, removal of catalyst fines, and filtration of corrosive chemicals in chemical manufacturing plants.
- Pharmaceuticals: Filtration of pharmaceutical ingredients, sterile solutions, and process fluids in pharmaceutical manufacturing facilities.
- Food and Beverage: Clarification and purification of juices, syrups, oils, and beverages in food processing plants.
- Water Treatment: Filtration of potable water, wastewater, and industrial process water in municipal and industrial water treatment systems.
In summary, the five-layer sintered mesh filter element offers advanced filtration capabilities with high efficiency, dirt-holding capacity, and mechanical strength, making it a versatile and reliable solution for a wide range of industrial applications.
